Gas terugslagklep ULTRA 42

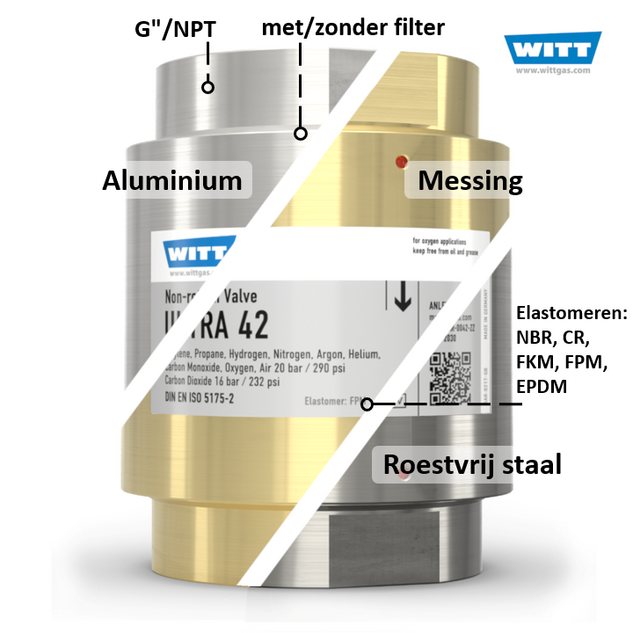

Gebaseerd op ULTRA 40 - uw ontwerp op maat: meerdere combinaties van behuizings- en afdichtingsmaterialen, met of zonder filter

  • vrije keuze van materiaal voor de behuizing (messing, roestvrij staal, aluminium) en afdichting (NBR/CR, FPM/FKM, EPDM/FFKM), met of zonder filter
  • voor speciale vereisten, zoals een corrosieve omgeving, acetyleen, lichte constructie, temperaturen boven 70 °C

Gebaseerd op ULTRA 40 inclusief:

  • veiligheidselement: gaskeerklep [NV]
  • ieder appendage wordt 100% getest
  • DIN EN ISO 5175-2
  • biedt weining drukverlies door een vernuftigd klepsysteem, openingsdruk (ca. 5 mbar)
  • compact ontwerp: 114 X 146 mm, 7.1 kg, G 2.1/2"
  • minimale geluidsemissie
  • ideaal voor toepassingen waar met lage drukken wordt gewerkt zoals thermische processen, biogas enz.

Datablad Downloads
Offerte aanvraag

Informatie

WITT non-return valves for reliable protection against dangerous reverse gas flow. Flow-optimised valve system causes very low pressure drop at minimal noise emission. Every non-return valve 100% tested.

ULTRA 42 is based on ULTRA 40 and is customized according to the requirements of the customer - ideal for special requirements. A modular system which allows flexible material combinations for housing and sealings.



Combination possibilities

  • housing available in brass, stainless steel or aluminium
  • sealings of NBR, CR, FKM, EPDM, FFKM for example
  • with or without dirt filter in gas inlet



Benefits

  • precisely tailored design for special requirements. For example corrosive environments, acetylene, ultra-lightweight construction, temperatures above 70 °C / 158 °F
  • a spring loaded non-return valve prevents back feeding of gases which could lead to unwanted gas mixtures
  • low pressure drop – using complex valve assembly with low opening pressures (approx. 5 mbar)
  • stainless steel filter (100 μm) in the gas inlet protects the non-return valve against dirt contamination, extending the service life
  • flow-optimised valve system for:

     - ultra low pressure drop
     - minimal noise emission

  • no leaks – using of a spring loaded valve assembly with elastomer sealing
  • in accordance to DIN EN ISO 5175-2
  • available in brass, stainless steel or aluminium
  • diverse applications – useful for many technical gases
  • reduce installation costs – the spring loaded valve is not affected by gravity and may be installed in any orientation


Operation / Usage

  • non-return valves are used to protect equipment and pipelines against dangerous reverse gas flow.
  • Use is possible for applications according to EN 746-2
  • WITT non-return valves may be mounted in any position / orientation



Maintenance

  • annual testing of the non-return valve and body leak tightness is recommended
  • WITT is happy to supply special test equipment
  • non-return valves are only to be serviced by the manufacturer

Approvals
Company certified according to ISO 9001
Cleaned for Oxygen Service according to EIGA IGC Doc 13/12/E: Oxygen Pipeline and Piping Systems
