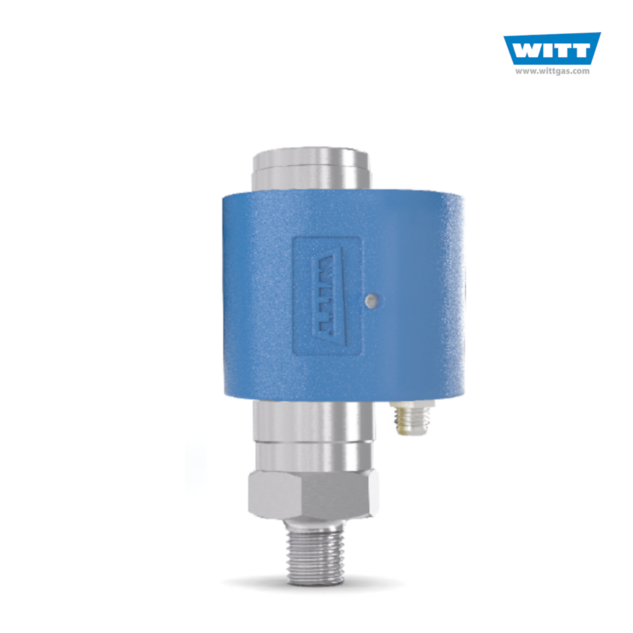

Soupape de sécurité SV 805-ES SMART

Soupape de sécurité intelligente en acier inoxydable pour évacuer les surpressions, jusqu'à 45 bar, affichage de l'état «ouvert» ou «fermé»

soupape de purge à ressort à action directe
affichage visuel de l'état «ouvert» ou «fermé»
signal numérique pour transmission à un contrôleur
chaque soupape de sécurité est testée à 100%
marquage CE selon PED 2014/68 / EU
idéale aussi pour utilisation avec gaz corrosifs
réglage exact de la pression d'ouverture spécifiée
longueur 96,5/101,5 mm

Fiche produit Téléchargements
Demande de devis

Informations

Spring loaded, direct acting safety relief valve for venting excess pressure from vessels, pipelines and other equipment, combined with high-tech sensors and electronic components.
The safety relief valve SV805 SMART indicates via a red/green diode, which signals its status: open or closed. The signal is then transmitted to a control system. Open/closed status is communicated in real-time. This is key contribution to accident prevention and process monitoring.

Features of safety relief valve SV805

according to PED 2014/68/EU, category IV, Module B and D
individual opening pressure
TÜV-certification of pressure setting
available in brass or stainless steel (ES)
sealing material to suit gas or customer request
compact size for easy, problem free installation
range of inlet connections

Smart Features

optical display of status „open“ or „closed“ via a red/green diode directly at the valve
digital signal via a NPN / PNP open collector signal, for transmission to a control system

Approvals
Manufactured and certified according to EN ISO 4126-1
Company certified according to ISO 9001 and PED 2014/68/EU Module H
CE-marked according to PED 2014/68/EU
The protected system must not exceed category III
Designed for Oxygen Service in accordance with EIGA 13/20 and CGA G-4.4: Oxygen Pipeline and Piping Systems
Cleaned for Oxygen Service in accordance with EIGA 33/18 and CGA G-4.1: Cleaning of Equipment for Oxygen Service
