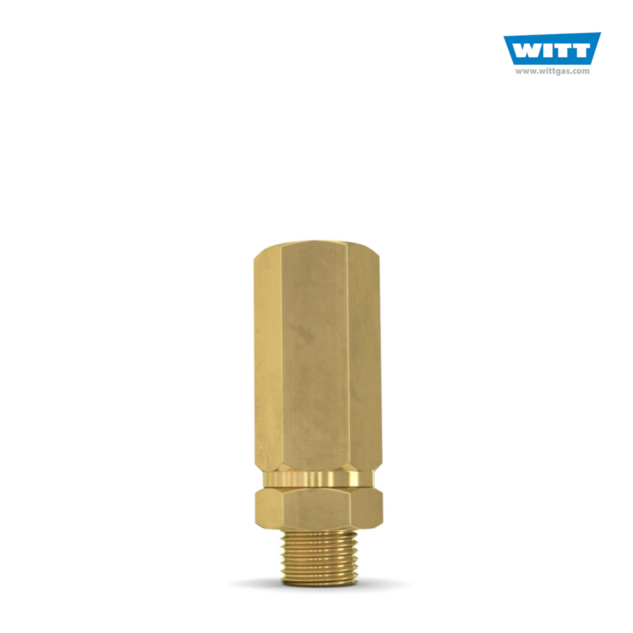

Gas terugslagklep NV654

Terugslagklep ter voorkoming van ongewenste mengsels, voor flow tot 130 m³/h (Lucht), tot 60 bar, G 1/8

veiligheidselement: Terugslagklep [NV]
ieder appendage wordt 100% getest
biedt weining drukverlies door een vernuftigd klepsysteem, openingsdruk (ca. 30 mbar)
klein en licht: 14 X 42 mm, 39 g
tot 60 bar werkdruk (O2:tots 30 bar)
Lucht max. 130 m³/h (vrije uitstroom)

Dit model is ook in RVS leverbaar

Informatie

WITT non-return valves for reliable protection against dangerous reverse gas flow. Every non-return valve 100% tested.

Benefits:

a spring-loaded non-return valve prevents a reverse flow of gases which could lead to unwanted gas mixtures
low pressure drops – using complex valve assembly with low opening pressures (approx. 30 mbar)
no leaks – using a spring-loaded valve assembly with elastomer sealing
diverse applications – useful for many technical gases
reduce installation costs – the spring-loaded valve is not affected by gravity and may be installed in any orientation
compact design, small mounting dimensions

Operation / Usage:

non-return valves are used to protect equipment and pipelines against dangerous reverse gas flow
WITT non-return valves may be mounted in any position / orientation
the maximum ambient / working temperature is 70 °C / 158 °F

Maintenance:

annual testing of the non-return valve and body leak tightness is recommended
WITT is happy to supply special test equipment
non-return valves are only to be serviced by the manufacturer

Approvals
Company certified to ISO 9001 and PED 2014/68/EC Module H
Designed for Oxygen Service in accordance with EIGA 13/20 and CGA G-4.4: Oxygen Pipeline and Piping Systems
Cleaned for Oxygen Service in accordance with EIGA 33/18 and CGA G-4.1: Cleaning of Equipment for Oxygen Service
