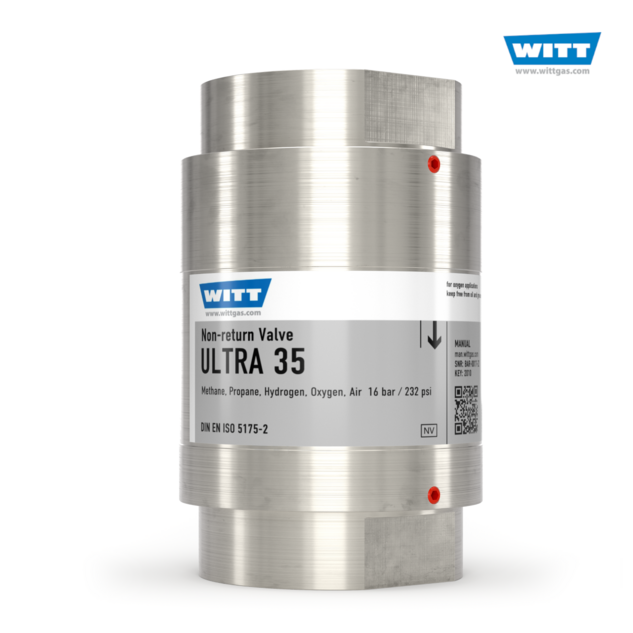

Non-Return Valve ULTRA 35, Stainless Steel
Ultra-performance protection against gas return: compact, quiet, ideal for low pressure applications. Opening pressure approx. 3 mbar, working pressure up to 16 bar, G 1.1/2 - G 2
- safety element: non-return valve [NV]
- every non-return valve 100% tested
- ultra-low opening pressures (approx. 3 mbar), ultra-low pressure drop
- compact and light: 90 X 145 mm, 2.789 g
- minimal noise emission
- dirt filter (100 μm) on gas inlet
- ideal for biogas desulphurisation systems
- for applications where low pressures are used
- use is possible for applications according to EN 746-2
Information
WITT non-return valves for reliable protection against dangerous reverse gas flow. Every non-return valve 100% tested.
Benefits:
- a spring-loaded non-return valve prevents a reverse flow of gases which could lead to unwanted gas mixtures
- low pressure drops – using complex valve assembly with low opening pressures
- no leaks – using a spring-loaded valve assembly with elastomer sealing
- stainless steel filter (100 μm) in the gas inlet protects the non-return valve against dirt contamination, extending the service life
- diverse applications – useful for many technical gases
Operation / Usage:
- non-return valves are used to protect equipment and pipelines against dangerous reverse gas flow. Use is possible for applications according to EN 746-2
- ideal for use with corrosive gases in the chemical industry, process technology or in laboratories
- WITT non-return valves may be mounted in any position / orientation the maximum ambient / working temperature is 70 °C / 158 °F
Maintenance:
- annual testing of the non-return valve and body leak tightness is recommended
- WITT is happy to supply special test equipment
- non-return valves are only to be serviced by the manufacturer. The dirt filter may be replaced by competent staff
Approvals
Company certified to ISO 9001 and PED 2014/68/EC Module H
CE-marked in accordance with PED 2014/68/EC
Cleaned for Oxygen Service according to EIGA IGC Doc 13/12/E: Oxygen Pipeline and Piping Systems
