ERC HD Gas Mixer System

Optimum solution for your perfect laser cut – including gas receiver

quality gas mixers from the world market leader
perfectly suited to your laser system

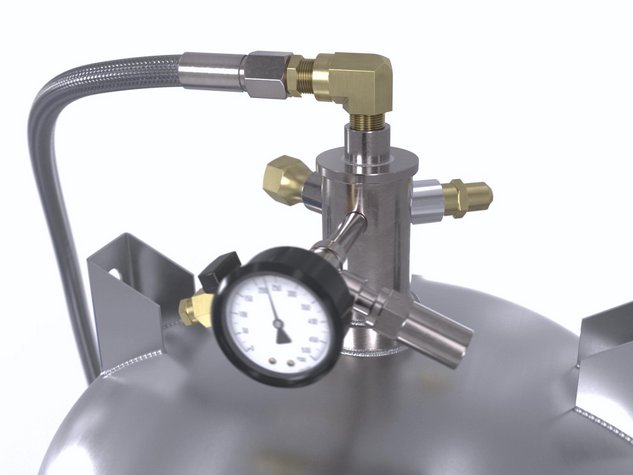

MG100 gas mixer combined with a 500 PSI 200 l stainless steel gas receiver
very high mixing accuracy for a perfect O2/N2 mixing ratio even for the smallest flows
integrated pressure equalization via WITT dome pressure regulators for maximum long-term stability
user-friendly and intuitive operation via touchscreen
option: gas filters for maximum purity of the gas mixture and optimum function of the laser cutter
seamless integration into laser cutting system via Ethernet, RS232, 4-20mA, OPC-UA and BUS interfaces

Information

Gas mixing systems for 2 defined gases, designed for a variety o f industrial applications with high flows and fluctuating gas mixture production requirements.

Capacity range from 0 to approx. 15 356 SCFH.
Note:
System only works with sufficient buffer volume (200 litres or larger depending on gas mixing capacity).

Easy operation
● an electro-pneumatic proportional mixing valve provides infinitely variable mixture settings
- with control unit GC50 (local)
- via Ethernet or analogue input (remotely adjustable)
● user friendly input of data and process parameter by integrated keyboard or via PC (for example MS-Excel®)
● simple, intuitive operation; no qualified personnel necessary
● customer oriented quality documentation by easy data management and evaluation
● gas mixture withdrawal possible from zero to the maximum flow capacity

High process reliability
● too low inlet pressures and/or temperature triggers an audible/visual alarm and shuts down the mixed gas supply
● lockable transparent door for protection of settings
● independent of pressure fluctuations in the gas supply
● intermittent gas mixture withdrawal possible

Options
● Software
GCC Software for download of data
Webvisio Software for remote monitoring and control
● Pressure Regulators and Filters
Series 737 LE/S HD regulators
Series 747 LE/S regulators
Model 77 inlet/outlet filters
