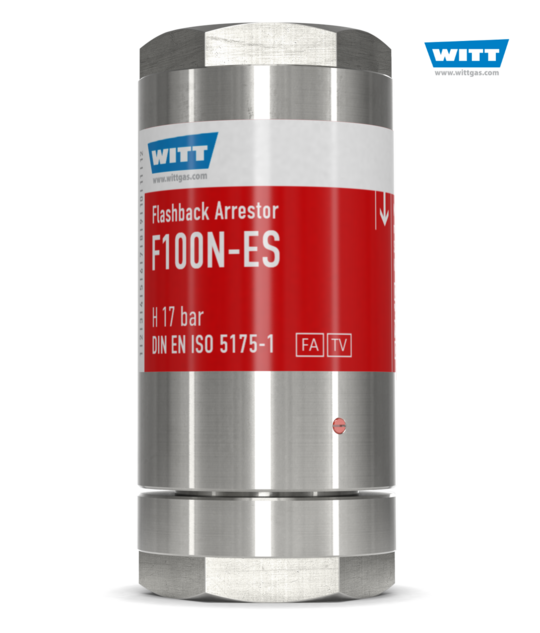

Flashback Arrestor F100N-ES

Flashback arrestor, certified to DIN EN ISO 5175-1 stainless steel, for hydrogen up to 17 bar

  • highest quality from the world market leader
  • safety elements: flame arrestor [FA], temperature-sensitive cut-off valve [TV]
  • every arrestor 100% tested
  • for highest working pressures, e.g. with flame spraying
  • 48 X 103 mm, 1.236 g
  • air max. 32 m³/h (free flow-off)

Data sheet Downloads
Quotation request


WITT Flashback Arrestors for reliable protection against dangerous flashbacks in accordance with DIN EN ISO 5175-1, for hydrogen (H2) up to 17 bar. Every Arrestor 100% tested.


  • a large surface area flame arrestor FA of stainless steel construction extinguishes any dangerous flashback entering the device in any direction
  • a temperature-sensitive cut-off valve TV extinguishes sustained flashbacks long before the internal temperature of the arrestors reaches a dangerous level

Operation / Usage:

  • the Flashback Arrestors are used to protect gas cylinders and pipeline outlet points (hoses and any equipment) against flashbacks at highest working pressures up to 17 bar, at hydrogen in case of flame spraying
  • ideal for use with corrosive gases in the chemical industry, or process technology
  • WITT Flashback Arrestors may be mounted in any position / orientation
  • the maximum ambient / working temperature is 60 °C / 140 °F
  • gases: hydrogen (more upon request)


  • annual testing of the body leak tightness and flow capacity is recommended
  • Flashback Arrestors are only to be serviced by the manufacturer

Company certified to ISO 9001
