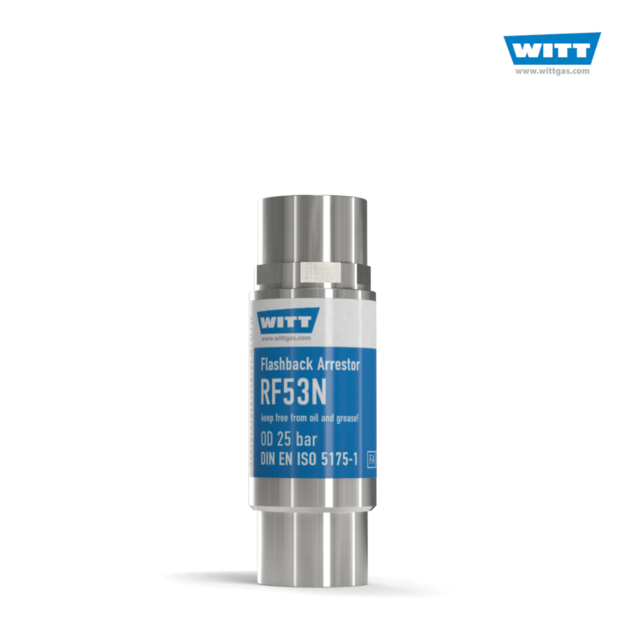

Flashback Arrestor RF53N-ES

Universal flashback arrestor, certified to DIN EN ISO 5175-1, stainless steel

  • highest quality from the world market leader
  • safety elements: flame arrestor [FA], temperature-sensitive cut-off valve [TV], non-return valve [NV], filter on gas inlet
  • every arrestor 100% tested
  • ideal also when using corrosive gases
  • 25,5 X 82 mm, 191 g
  • acetylene max. 13 m³/h (free flow-off)
  • fuel gases max. 68 m³/h (free flow-off)
  • oxygen max. 187 m³/h (free flow-off)

    Data sheet Downloads
    Quotation request

    Information

    WITT Flashback Arrestors for reliable protection against dangerous reverse gas flow and flashbacks in accordance with DIN EN ISO 5175-1. Every Arrestor 100% tested.

    The best Flashback Arrestors in the world

    Benefits:

    • a large surface area flame arrestor FA of stainless steel construction extinguishes any dangerous flashback entering the device in any direction
    • a temperature-sensitive cut-off valve TV extinguishes sustained flashbacks long before the internal temperature of the arrestors reaches a dangerous level
    • a spring-loaded non-return valve NV prevents slow or sudden reverse gas flow forming explosive mixtures in the gas supply
    • a filter at the gas inlet protects the arrestor against dirt contamination, extending the service life (RF53N-ES)
    • gases: acetylene, natural gas, LPG, hydrogen, oxygen, compressed air (more upon request)

    Operation / Usage:

    • Flashback Arrestors are used to protect gas cylinders and pipeline outlet points (hoses and any equipment) against dangerous reverse gas flow (RF53N-ES) and flashbacks
    • ideal for use with corrosive gases in the chemical industry, process technology or in the laboratory area
    • WITT Flashback Arrestors may be mounted in any position / orientation
    • the maximum ambient/working temperature is 60 °C / 140 °F

    Maintenance:

    • annual testing of the non-return valve, body leak-tightness and flow capacity is recommended
    • WITT is happy to supply special test equipment.
    • Flashback Arrestors are only to be serviced by the manufacturer. The dirt filter may be replaced by competent staff

    Approvals:

    Company certified to ISO 9001.
    Cleaned for Oxygen Service according to EIGA IGC Doc 13/12/E: Oxygen Pipeline and Piping Systems

    Note: The Models RF53N and F53N are suitable for fuel gas and oxygen.
