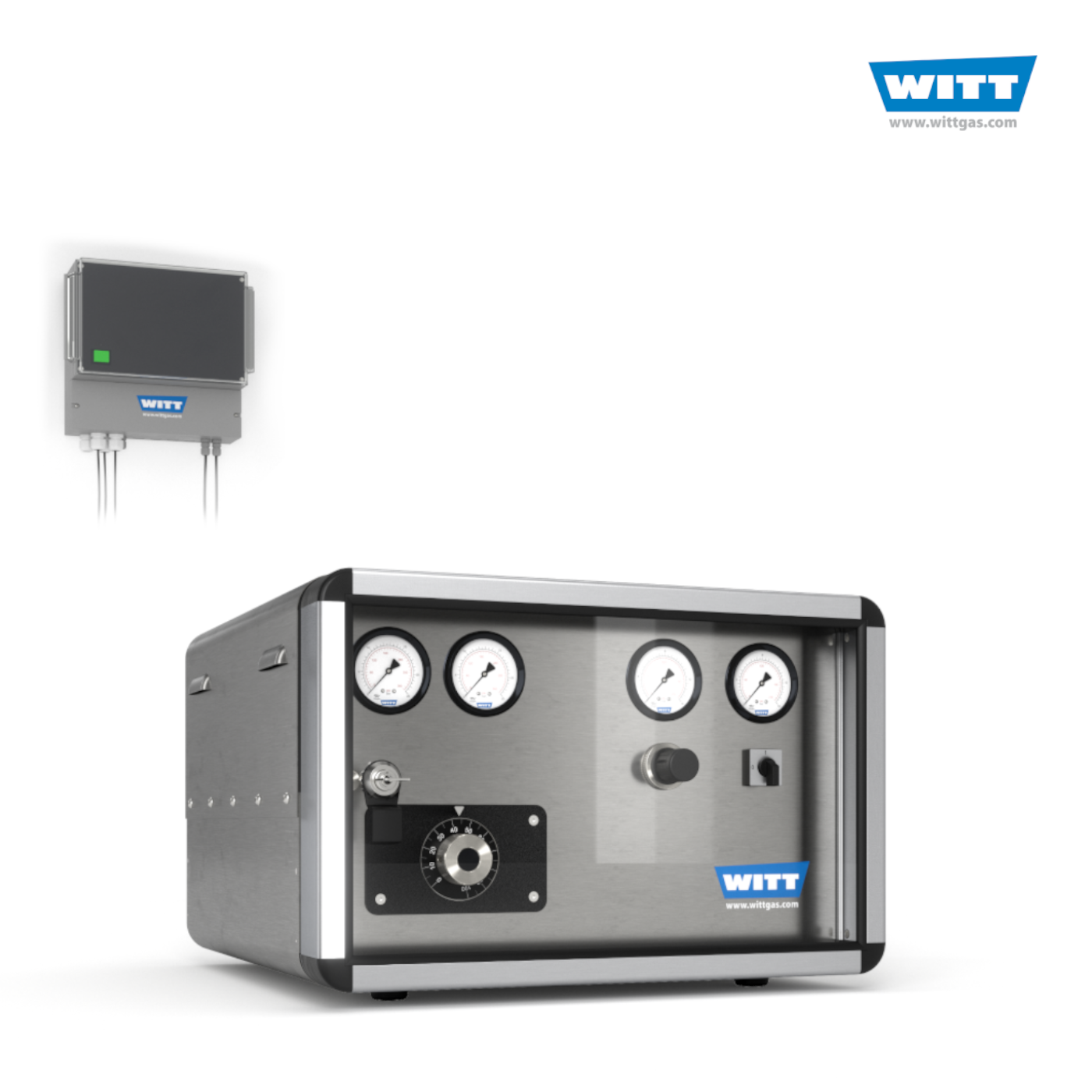

Gas Mixer MG50-100_2ME Ex

Gas mixer for 2 flammable gases for high flows and highly fluctuating gas mixture withdrawal

  • quality gas mixer from the world market leader
  • also for discontinuous withdrawal
  • gas mixture withdrawal from 0 up to 161 Nm³/h
  • infinitely variable mixture settings
  • independent of pressure fluctuations
  • intermittent gas mixture withdrawal possible
  • system only works with sufficient buffer volume

Data sheet Downloads
Quotation request

Information

Gas mixing systems for 2 defined gases, designed for a variety of industrial applications with high flows and fluctuating gas mixture production requirements.

Capacity range from 0 to approx. 161 Nm3/h.
For the exact pressure and flow capacity ratios, please refer to the data sheet.
Note: System only works with sufficient buffer volume (100 to 250 litres depending on gas mixing capacity).

Easy operation:

  • a proportional mixing valve (-2ME) with a control knob and %-scale provides infinitely variable mixture settings
  • gas mixture withdrawal possible from zero to the maximum flow capacity

High process reliability:

  • independent of pressure fluctuations in the gas supply
  • intermittent gas mixture withdrawal possible
  • lockable transparent door for protection of settings
  • splash-proof and robust stainless steel housing

Options:

  • for flammable gases available as Ex-version with separate control cabinet without electrical equipment as MP-version
  • alarm module AM3: integrated inlet pressure monitoring with digital display for pressure (with analogue pressure transmitters) plus optical alarm, adjustable alarm limits, obligation of acknowledgement, protection of alarms, interfaces for controlling external alarms etc.
  • integrated gas analysis for the monitoring/control and documentation of the gas mixture production
  • gas mixer mounted on gas mixture buffer tank for a more convenient installation


Other models, options and accessories available on request. Please identify the individual gases at the time of enquiring!

Our gas mixers are always customised to the needs of the costumer. Please tell us your specifications, we will realise them.

Accessories

Inlet Pressure Monitoring with Alarm Module AM3

Permanent inlet pressure monitoring for optimum quality and economy of the production

Inline Gas Analyser

Plug-in module for permanent analysis of gas mixture, e.g. for CO2, O2, H2, He

Gas Receivers

Steel and stainless steel receivers for gas mixtures

Changeover Station

Switch and control unit for automatic changeover of gas mixers for a continuous gas flow
