Ambient Air Monitoring System RLA multichannel

Ambient Air Monitoring System for the detection of combustible and toxic gases or oxygen (O2)

Benefits:

• connection of up to 16 transmitters for different gases
• easy programming of the measurement range, the measurement designation, the type of transmitter and the type of gas can be set individually as well as three alarm thresholds
• 8 internal relays, 6 of them freely programmable

     - allocation of one or more measurement points to relay
     - single alarm per measurement point
     - single alarm per alarm threshold
     - configuration of collective alarm and group alarm
     - error report and voting function

• large illuminated graphic display with traffic light function for continuous visual monitoring of the gas concentration
• with integrated alarm transmitter (signal light and -audible alarm)
• easy wall mounting
• max. 20 cable glands
• connections for alarm easily accessible on fore front
• Transmitters:

     - with status and function display
     - long lifetime of sensors
     - setting without opening of housing via keystroke
     - on site alarm by integrated horn (optionally)

Options:

• 2GB micro SD memory card for saving measurement values, averages, alarm events and errors in individual intervals
• flow-through adapter for sensor check and calibration

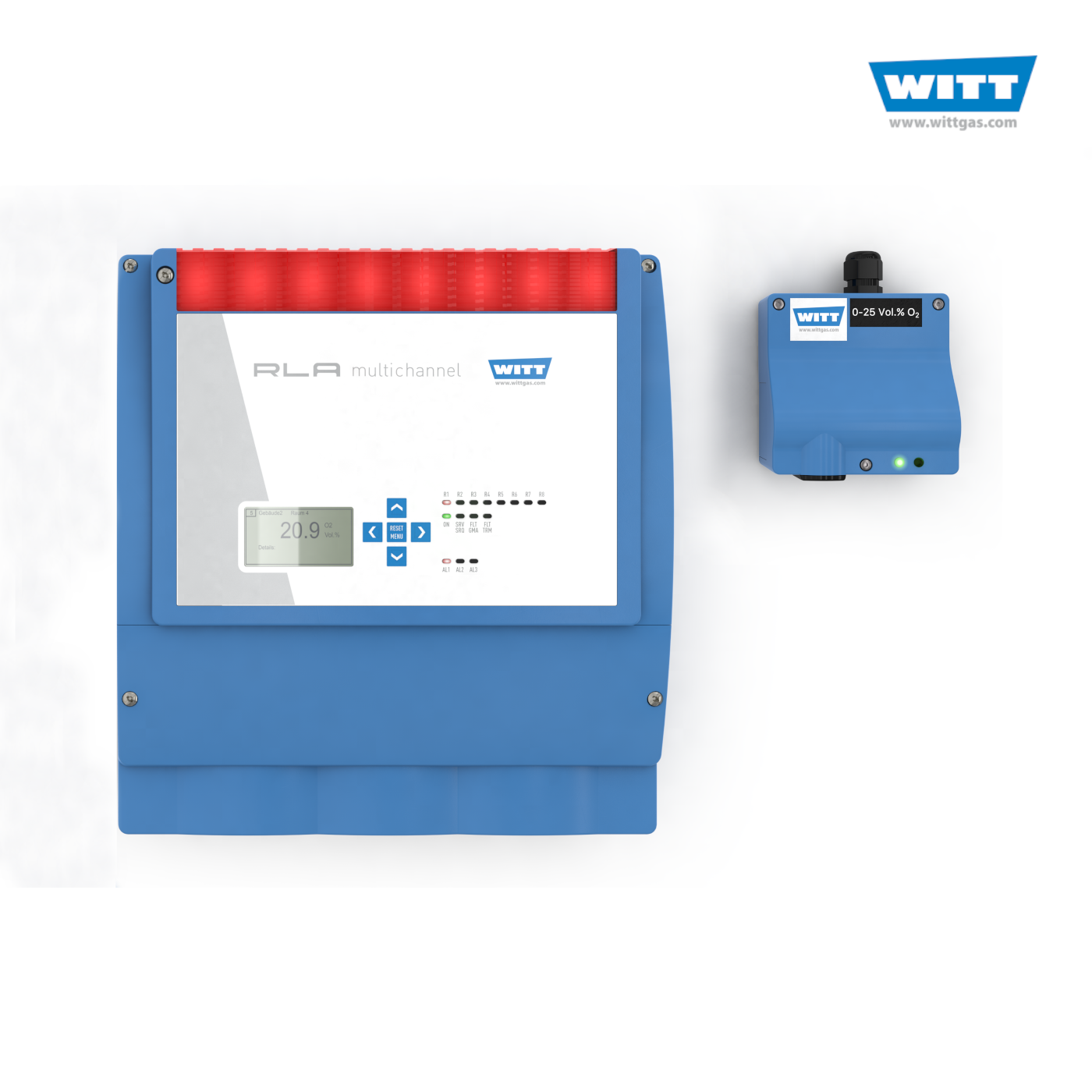

Components:
1. Control and Display Unit
2. Transmitter/s
3. Transmitter cable for connecting of Transmitter and Control Unit
