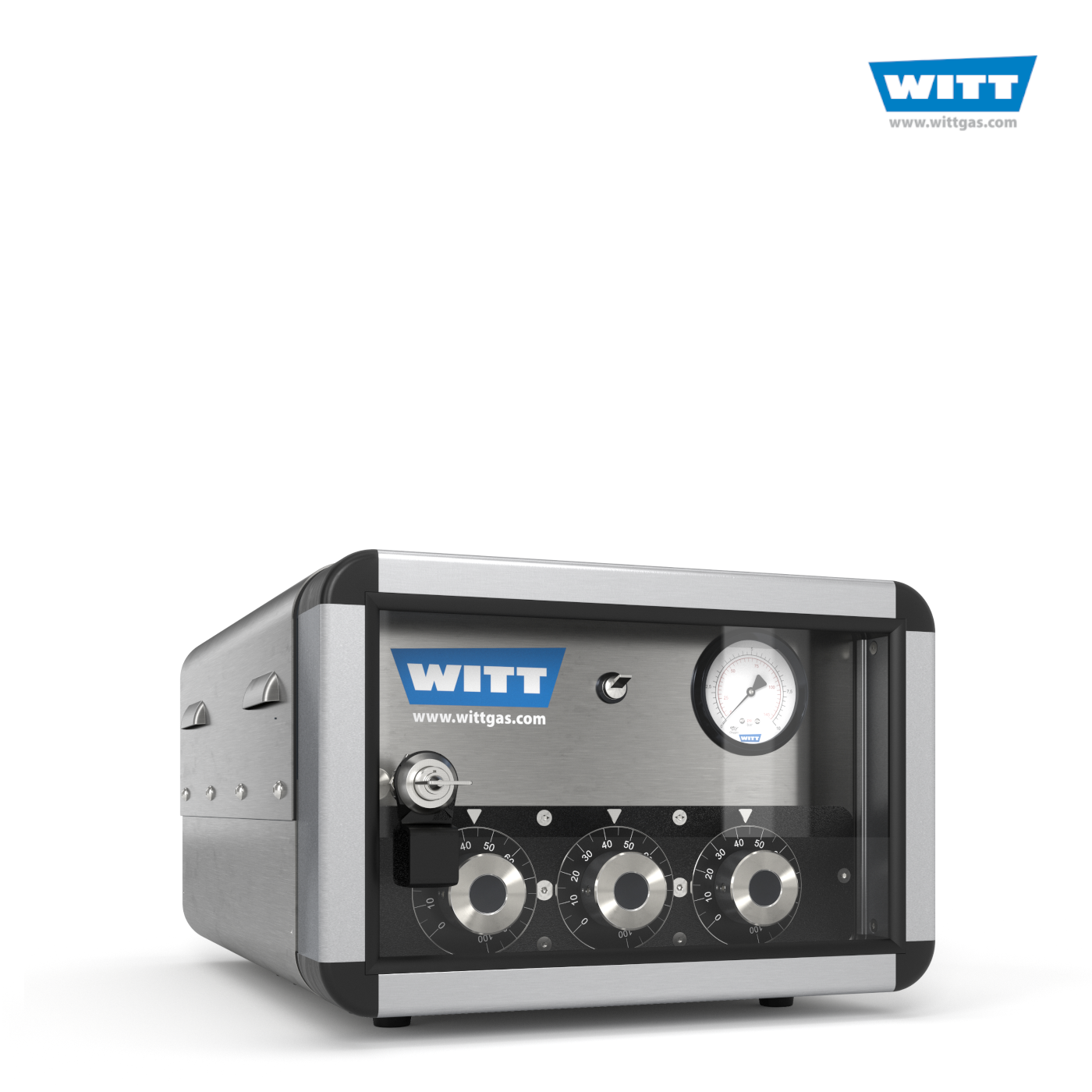

Gas Mixer KM20-100_3ME Ex

Gas mixer for 3 flammable gases for highly fluctuating mixed gas withdrawal quantities

  • quality gas mixer from the world market leader
  • infinitely variable mixture settings
  • gas mixture withdrawal possible from zero to the maximum flow capacity
  • independent of pressure fluctuations in the gas supply
  • intermittent gas mixture withdrawal possible
  • system only works with sufficient buffer volume

Data sheet Downloads
Quotation request

Information

Gas mixing systems for 3 defined gases, designed for a variety of industrial applications, particularly for all areas with sharply fluctuating mixed gas extraction quantities.
Capacity range from 0 to approx. 544 Nl/min.
For the exact pressure and flow capacity ratios, please refer to the data sheet.
Note: System only works with sufficient buffer volume (20 to 100 litres depending on gas mixing capacity).

Easy operation:

  • three single mixing valves (-3ME), each with a control knob and %-scale, provide infinitely variable mixture settings
  • gas mixture withdrawal possible from zero to the maximum flow capacity

High process reliability:

  • independent of pressure fluctuations in the gas supply
  • intermittent gas mixture withdrawal possible
  • lockable transparent door for protection of settings
  • splash-proof and robust stainless steel housing

Options:

  • for flammable gases available as Ex-version with separate control cabinet
  • alarm module AM3: integrated inlet pressure monitoring with digital display for pressure (with analog pressure transmitters) plus optical alarm, adjustable alarm limits, obligation of acknowledgement, protection of alarms, interfaces for controlling external alarms etc.
  • integrated gas analysis for the monitoring/control and documentation of the gas mixture production
  • gas mixer mounted on gas mixture buffer tank for a more convenient installation

Other models, options and accessories available upon request. Please identify the individual gases at the time of enquiring!

Our gas mixers are always customised to the needs of the costumer. Please tell us your specifications, we will realise them.
