Gas mixing systems for 3 defined gases, designed for a variety of industrial applications with high flows and fluctuating gas mixture production requirements.
Capacity range from 0 to approx. 5,685 scfh. For the exact pressure and flow capacity ratios, please refer to the data sheet. Note: System only works with sufficient buffer volume (100 to 250 liters depending on gas mixing capacity).
three single mixing valves (-3ME), each with a control knob and %-scale, provide infinitely variable mixture settings
gas mixture withdrawal possible from zero to the maximum flow capacity
High process reliability:
independent of pressure fluctuations in the gas supply
intermittent gas mixture withdrawal possible
lockable transparent door for protection of settings
splash-proof and robust stainless steel housing

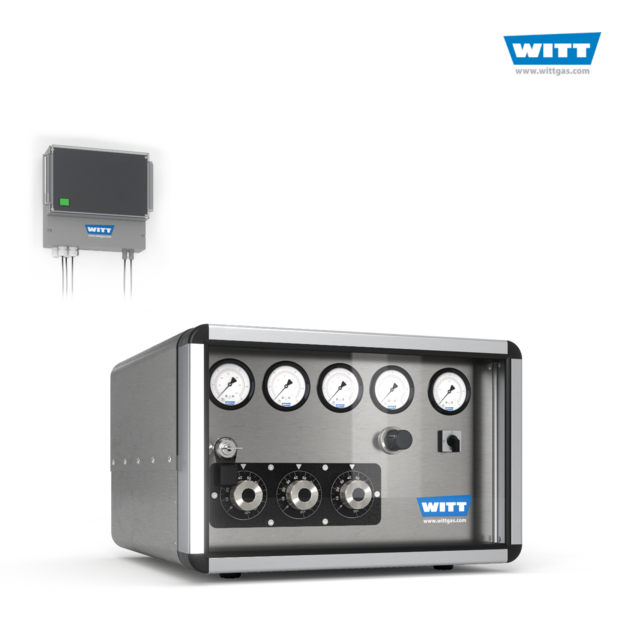

for flammable gases available as Ex-version with separate control cabinet without electrical equipment as MP-version
alarm module AM3: integrated inlet pressure monitoring with digital display for pressure (with analog pressure transmitters) plus optical alarm, adjustable alarm limits, obligation of acknowledgement, protection of alarms, interfaces for controlling external alarms etc.
integrated gas analysis for the monitoring/control and documentation of the gas mixture production
gas mixer mounted on gas mixture buffer tank for a more convenient installation
Other models, options and accessories available on request. Please identify the individual gases at the time of enquiring!
Our gas mixers are always customized to the needs of the costumer. Please tell us your specifications, we will realize them.
