WITT Afnamepunt 503 voor de verzorging van brandsnijmachines

Datablad Offerte aanvraag

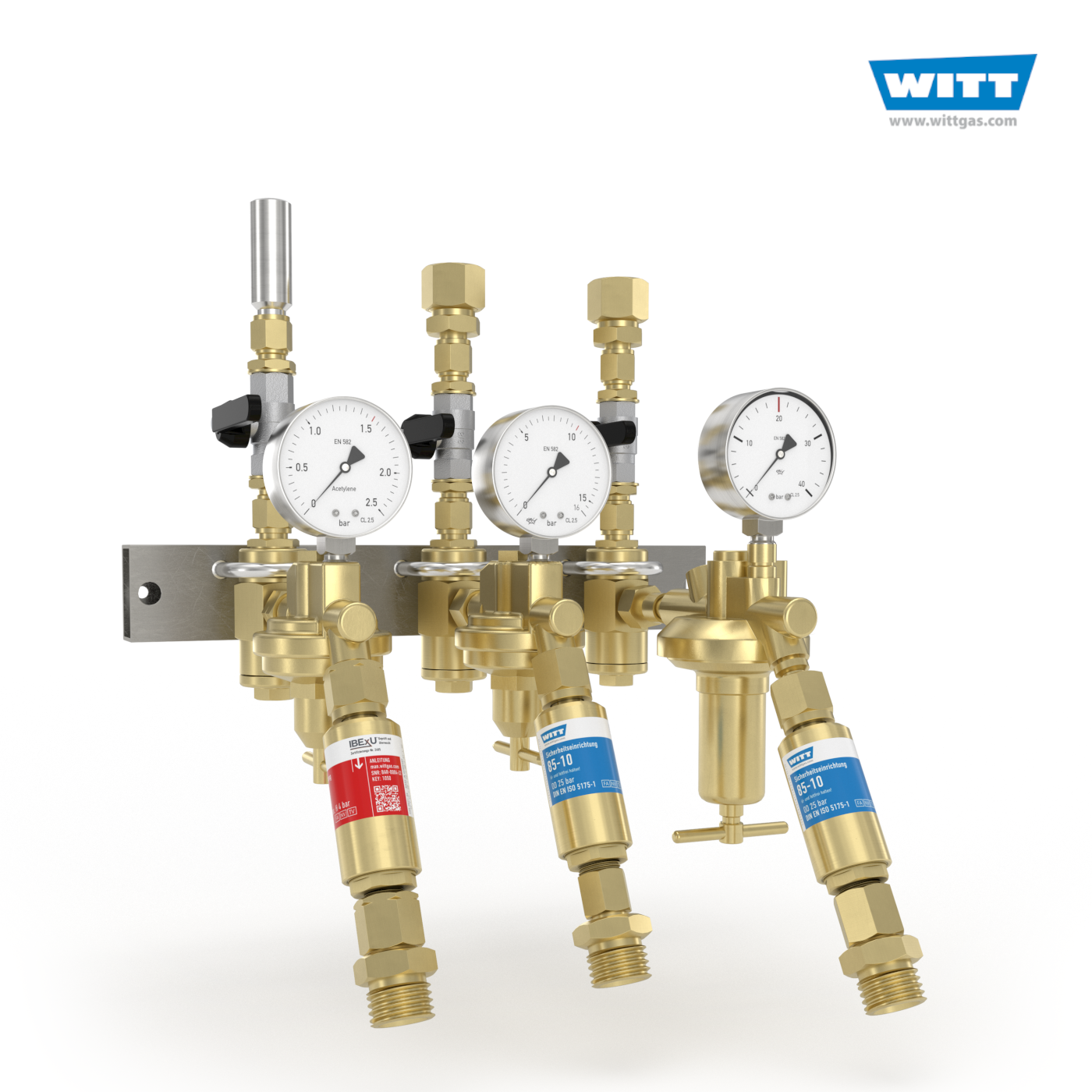

Afnamepunt met geintegreerd filter voor de verzorging van brandsnijmachines

  • voor brandbaar gas , opwarm zuurstof en snijzuurstof
  • met gasfilter 622 voor verhoogde standtijden van de nageschakelde armaturen
  • met beveiligingsinrichting 85-10 tegen gasterugslag en vlamdoorslag
  • compleet gemonteerd en getest

Informatie

Outlet point with integrated gas filters for cutting machines with fuel gas, heating oxygen and cutting oxygen.

Benefits:

  • inlet with fittings
  • reliable filtering performance increases service life of downstream fittings and equipment by gas filter 622 (40 μm)
  • ball valve in inlet signals clearly position OPEN / CLOSED respectively gas flow / gas stop
  • with safety device 85-10, against reverse gas flow and flashbacks according to DIN EN ISO 5175-1
  • quick and easy wall mounting
  • compact design on nickel plated square tube
  • completely mounted and tested

Operation / Usage:

  • Outlet points at the end of gas supply, verified with local required consumption rate
  • Applicable for cutting machines
  • Outlet points will be supplied according to our standard programme or your special design

Assembly:

  • Nickel-plated square tube. For withdrawal of:

1x Acetylene
inlet: soldering end 21.3 mm,
ball valve DN 10,
gas filter 622,
pressure regulator for outlet point,
safety device 85-10,
outlet: G 3/4 LH male with cone

1x Heating Oxygen
inlet: pipe coupler for copper- or stainless steel tube 15x1,
ball valve DN 10,
gas filter 622,
pressure regulator for outlet point,
safety device 85-10,
outlet: G3/4 RH male

1x Cutting Oxygen
inlet: pipe coupler for copper- or stainless steel tube 15x1,
ball valve DN 10,
gas filter 622,
pressure regulator for outlet point,
safety device 85-10,
outlet 3/4 RH male with cone

  • completely mounted and tested

Approvals
Company certified to ISO 9001
Designed for Oxygen Service in accordance with EIGA 13/20 and CGA G-4.4: Oxygen Pipeline and Piping Systems
Cleaned for Oxygen Service in accordance with EIGA 33/18 and CGA G-4.1: Cleaning of Equipment for Oxygen Service
