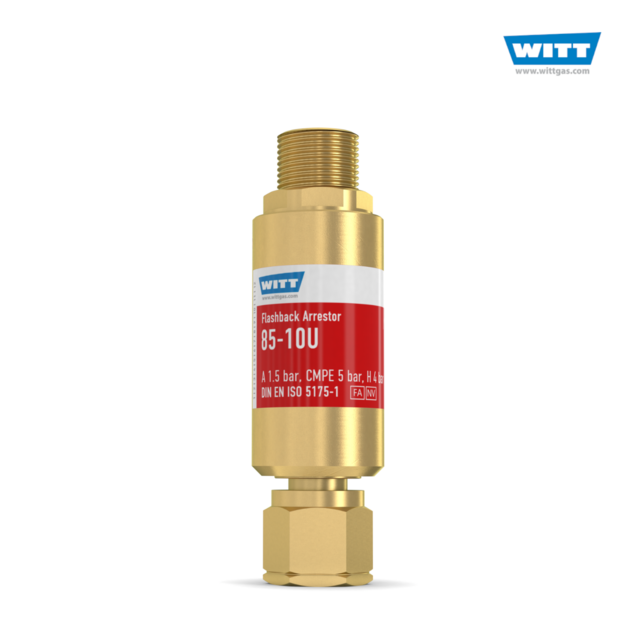

Vlamdover 85-10U

Datablad Offerte aanvraag

Vlamdover volgens de DIN EN ISO 5175-1 voor brandsnijmachines met grote capaciteit - zonder temperatuurgestuurde thermische beveiliging [TV]

hoogste kaliteit van de wereldmarktleider
beveiligingselementen: vlamdover [FA], gaskeerklep [NV], filter in de ingang
ieder appendage wordt 100% getest
34 X 106 mm, 434 g
Acetyleen max. 22 m³/h (vrije uitstroom)
Brandbare gassen max. 235 m³/h vrije uitstroom)
Zuurstof max. 310 m³/h (vrije uitstroom)

Informatie

WITT Flashback Arrestors for reliable protection against dangerous reverse gas flow and flashbacks in accordance with DIN EN ISO 5175-1. Every Arrestor 100% tested.

The best Flashback Arrestors in the world

a large surface area flame arrestor FA of stainless steel construction extinguishes any dangerous flashback entering the device in any direction
a temperature sensitive cut-off valve TV extinguishes sustained flashbacks long before the internal temperature of the arrestors reaches a dangerous level
a spring-loaded non-return valve NV prevents slow or sudden reverse gas flow from forming explosive mixtures in the gas supply

Operation / Usage:

Flashback Arrestors are used to protect gas cylinders and pipeline outlet points (hoses and any equipment) against dangerous reverse gas flow and flashbacks
for cutting machines with high flow
WITT Flashback Arrestors may be mounted in any position /orientation
only one piece of equipment may be connected to a single Flashback Arrestor
the maximum ambient / working temperature is 70 °C / 158 °F

Maintenance:

annual testing of the non-return valve, body leak-tightness and flow capacity is recommended
WITT is happy to supply special test equipment
Flashback Arrestors are only to be serviced by the manufacturer; the dirt filter may be replaced according to model by competent staff

Approvals

Company certified to ISO 9001 and PED 2014/68/EU Module H
CE-marked according to PED 2014/68/EU
Cleaned for Oxygen Service according to EIGA IGC Doc 13/12/E: Oxygen Pipeline and Piping Systems
